Additional Features:

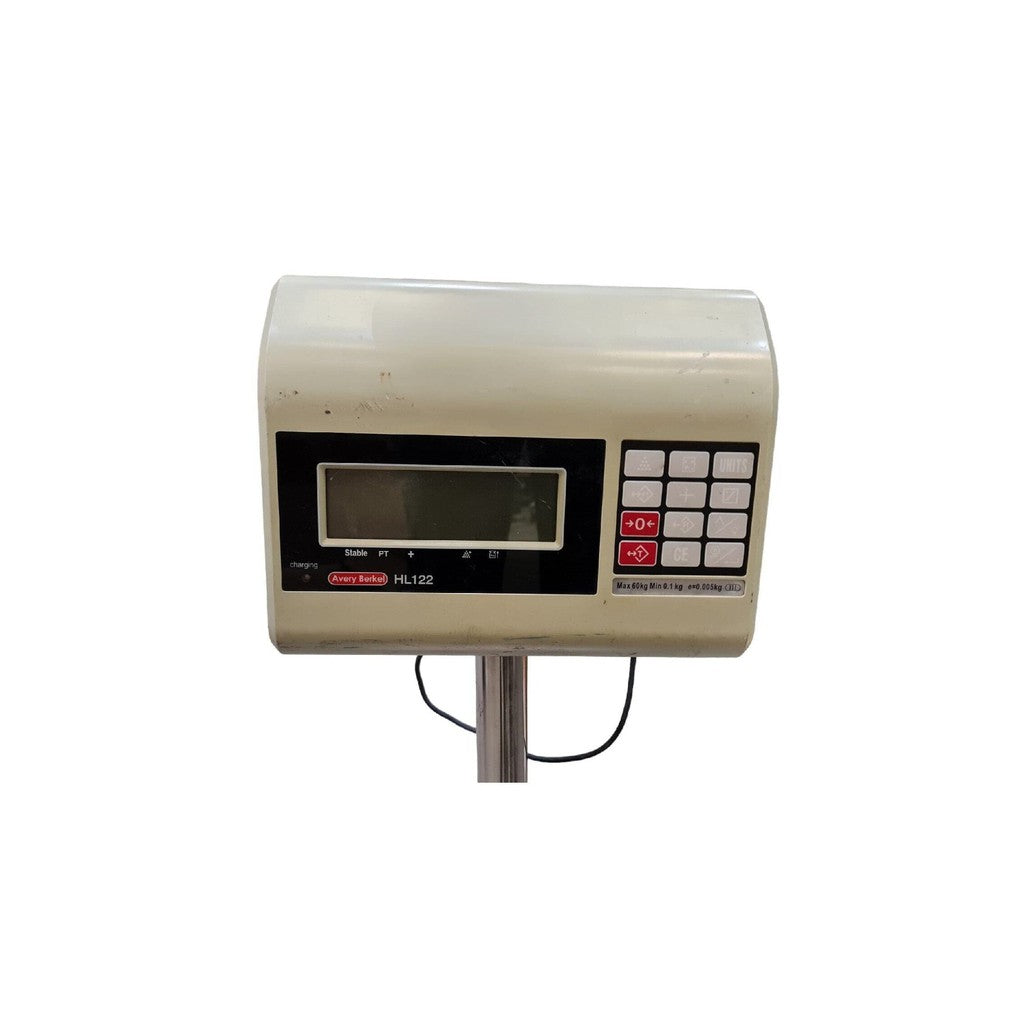

 ◆ Large display The digital display can be column or desk mounted and is easy to read from any angle and at a distance.

◆ Stylish design Robust and easy to clean, featuring a stainless steel platform and disposable plastic drip cover.

◆ Very simple to use The tactile keyboard features large keys with the essential functions highlighted in red.

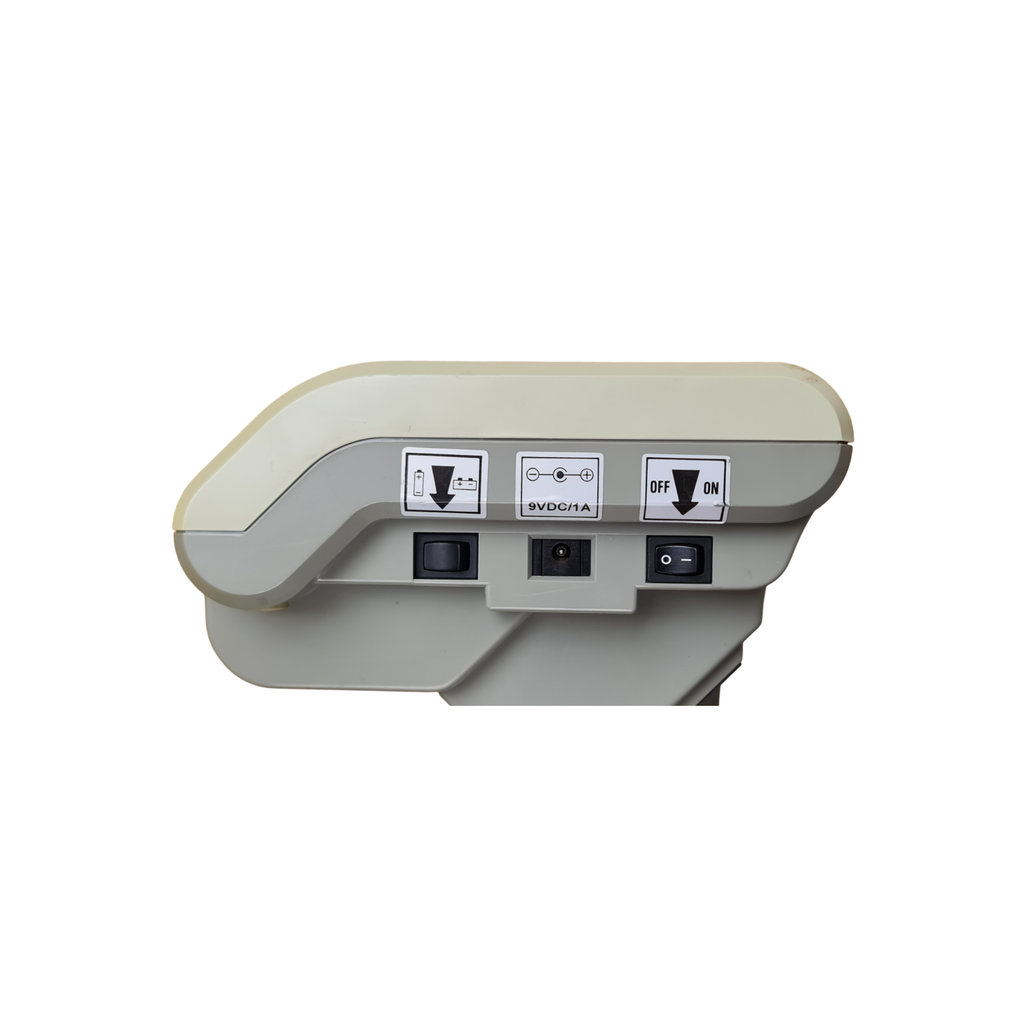

◆ Power flexibility The scale can be powered by dry cell batteries, via an internal rechargeable battery or from the mains.

◆ Options RS232 output providing continuous serial output or, automatic transmission when stable or, further transmission on request.

Relay output board providing under, over and on-target signals. Approved Capacities Capacity Division Platform Size 30 kg 0.01 kg 370 mm x 520 mm 60 kg 0.02 kg 370 mm x 520 mm 150 kg 0.05 kg 370 mm x 520 mm 60 kg 0.02 kg 460 mm x 600 mm 150 kg 0.05 kg 460 mm x 600 mm 300 kg 0.1 kg 460 mm x 600 mm Non-Approved Capacities Capacity Division Platform Size 30 kg 0.005 kg 370 mm x 520 mm 60 kg 0.01 kg 370 mm x 520 mm 120 kg 0.02 kg 370 mm x 520 mm 150 kg 0.02 kg 370 mm x 520 mm 150 kg 0.02 kg 460 mm x 600 mm 300 kg 0.05 kg 460 mm x 600 mm A B C G F E D Dimensions 370 mm x 520 mm Platform 460 mm x 600 mm Platform A = 520 mm A = 600 mm B = 370 mm B = 460 mm C = 127 mm C = 160 mm Indicator D = 278 mm E = 204 mm F = 174 mm G = 930 mm
