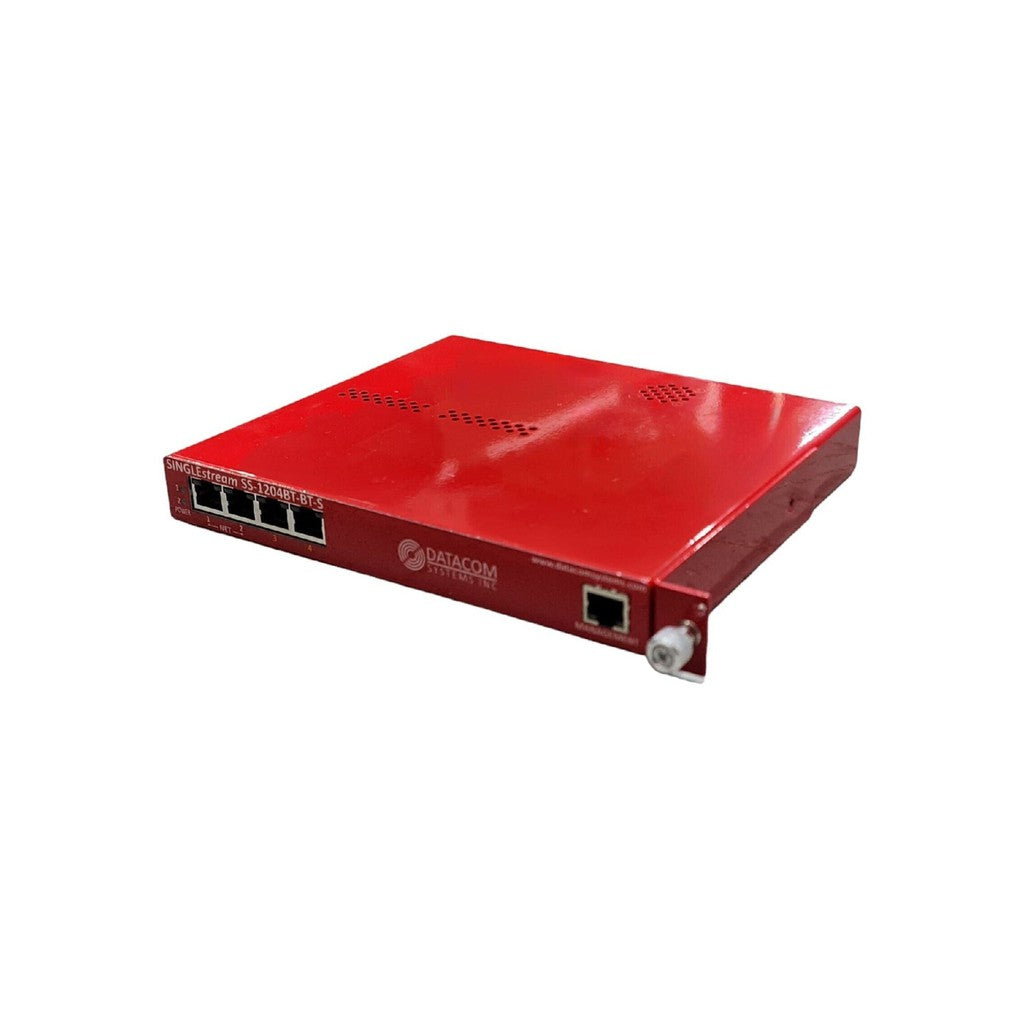

DATACOM SYSTEMS SINGLESTREAM SS-1204BT-BT-S 10/100/1000 ETHERNET TAP

The SINGLEstream SS-1204BT-BT-S Link Aggregation Tap is inserted inline (ports 1 and 2) and will collect traffic from a network link and allow you to combine it into a single output. With 2 monitoring ports (3 and 4), you can have 2 copies of that aggregate data, or when link utilization is high, keep the full duplex streams seperate. For additional flexibility, the monitor ports can also receive traffic from an external mirror port or another tap, providing you the ability to tap a link and add other traffic into a single output port.

• View entire full-duplex conversations using single interface monitoring tools
• Decrease reliance on switch resources for network management visibility
• Eliminate SPAN port contention, oversubscription, and configuration errors
• Deploy tools immediately without impacting your production network
• Easily share tap ports for improved monitoring without maintenance windows
• Single point of deployment and remote management minimizes management expenses and MTTR

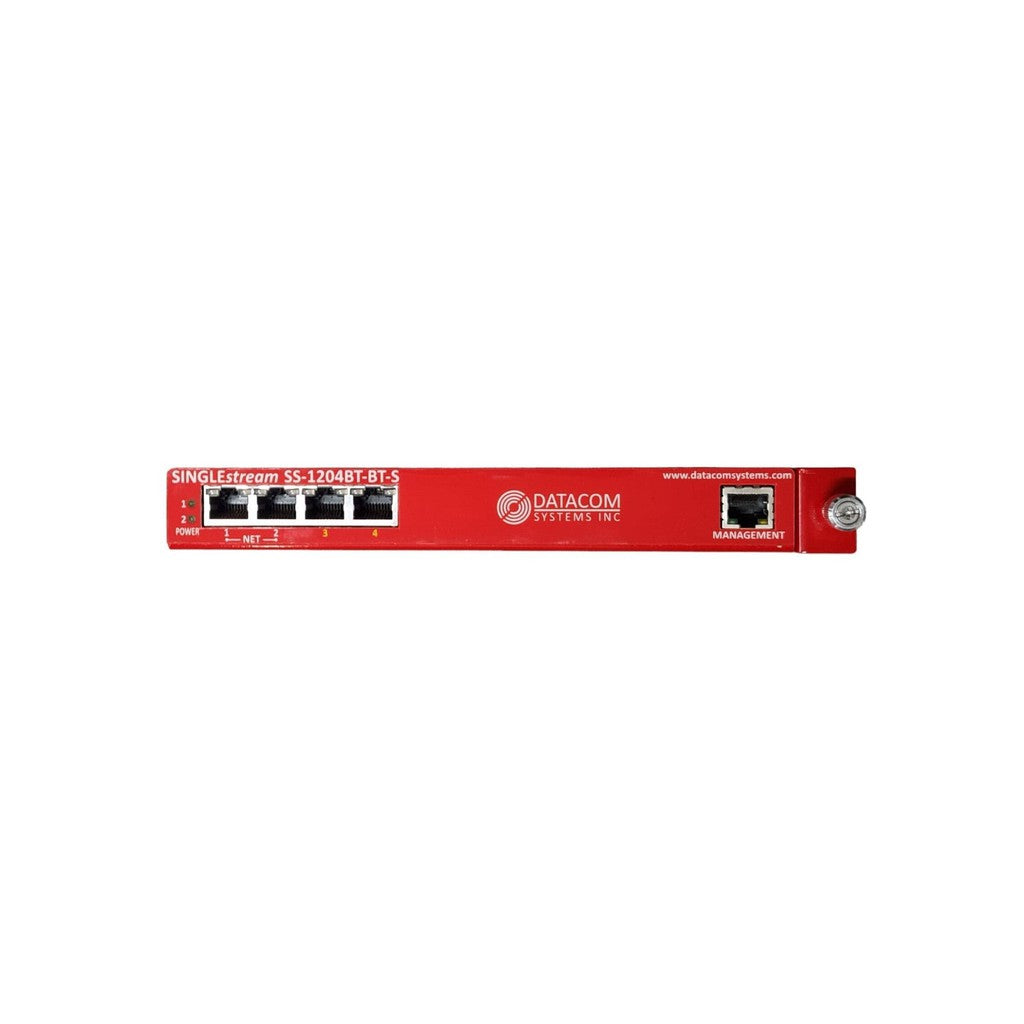

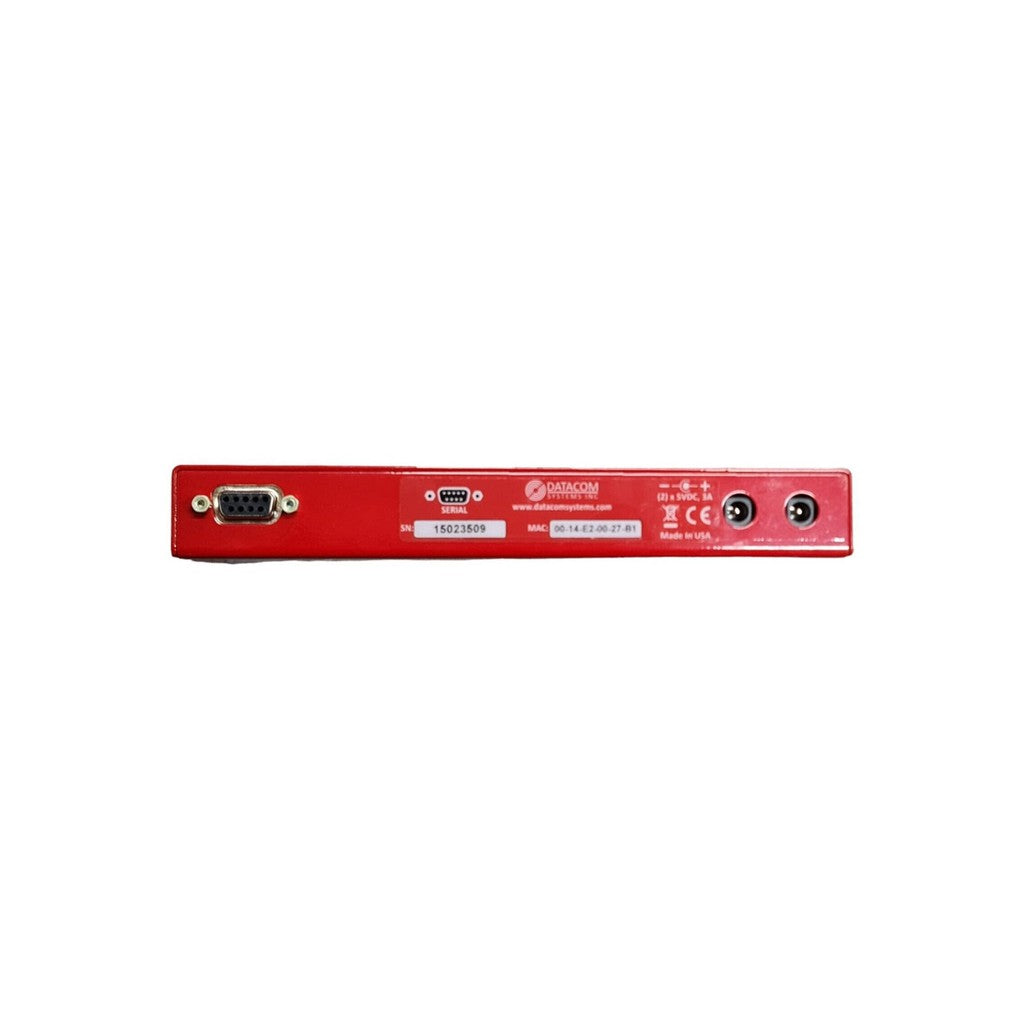

  Ports	Network: One (1) 10/100/1000 Network Tap (RJ45) Monitoring: Two (2) 10/100/1000 Any-to-Any Ports (RJ45) Management (front): RJ45 @ 100 Mbps Full-Duplex Serial (rear): DB9F
  Power Requirements	Two (2) External AC Adapters (included) Input: 100-240 VAC, 50-60Hz, 0.8A
  Dimensions (H x W x D)	1.10 x 8.00 x 7.00 in (2.79 x 20.32 x 17.78 cm)
  Weight	1.6 lbs (0.7 kgs)
  Operating Temperature	32º to 104ºF (0° to 40° C)
  Storage Temperature	-22º to 149ºF (-30° to 65° C)
  Humidity	5 to 90% non-condensing
  Certifications	CE Fully RoHS Compliant
  Warranty	One (1) Year Hardware Warranty included Advanced Replacement-Next Day, 3rd Business Day options available.
  Optional Rack Mount	RMC-3 RMC-12-3 RPS-12-5-AC (or -DC)
